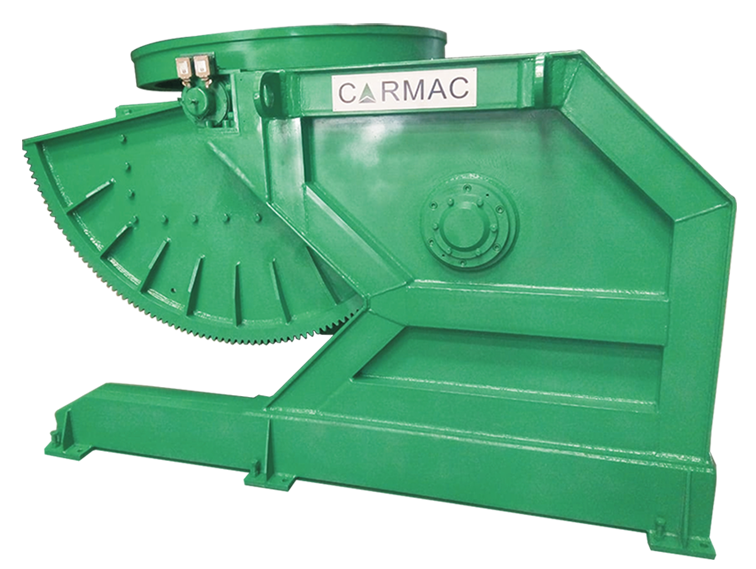

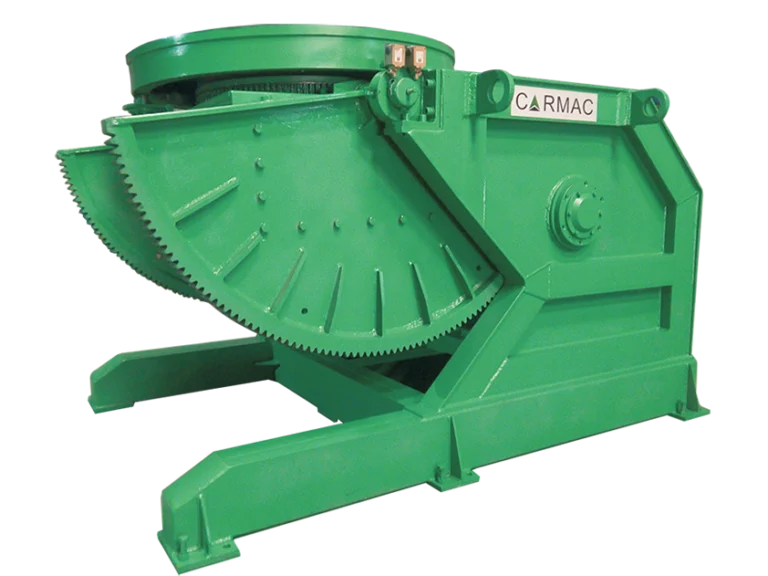

Welding Positioner

Name: Welding Positioner
Brand: Carmac

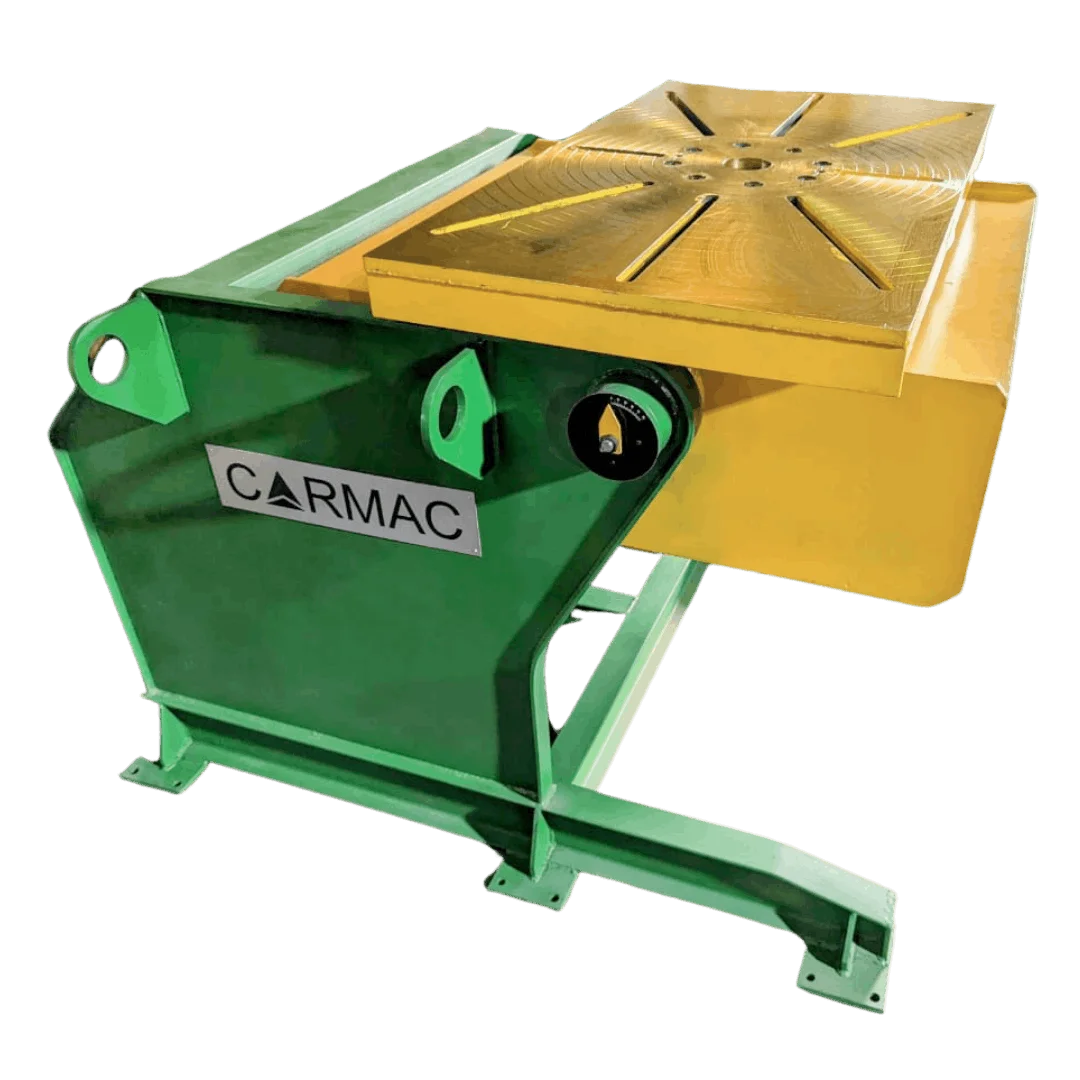

Advanced Welding Positioners for Precision Fabrication

CARMAC TECHNOLOGIES PVT. LTD. designs and manufactures Welding Positioner, including Heavy-Duty Positioner and Headstock and Tailstock Positioner models. It is a versatile piece of equipment especially suited for fabrication industry. Welding positioner is a special device which is used to obtain better and economical results for welding process. It is an advanced technology used to perform the welding, especially for circular welding, strip cladding and down hand position welding. It provides the smooth, relative, progressive motion between torch and joints to be welded. It can also be paired with a Welding Column and Boom for automated welding of large jobs.

Application

Special Features

Positioning of odd shaped jobs can be done easily.
Maximum flexibility and accessibility in handling jobs.
Reduced labor and increases production.
Improves welding quality and reduces the defects.
It can easily be interfaced with Column & Boom.
Robust and rugged design.
Mechanical stoppers are provided in case of limit switch failure.
Table rotation is variable with the help of VFD.
Degree of tilting can be given from 0 to 135-degree which will be fixed.
Customized face plate diameter.

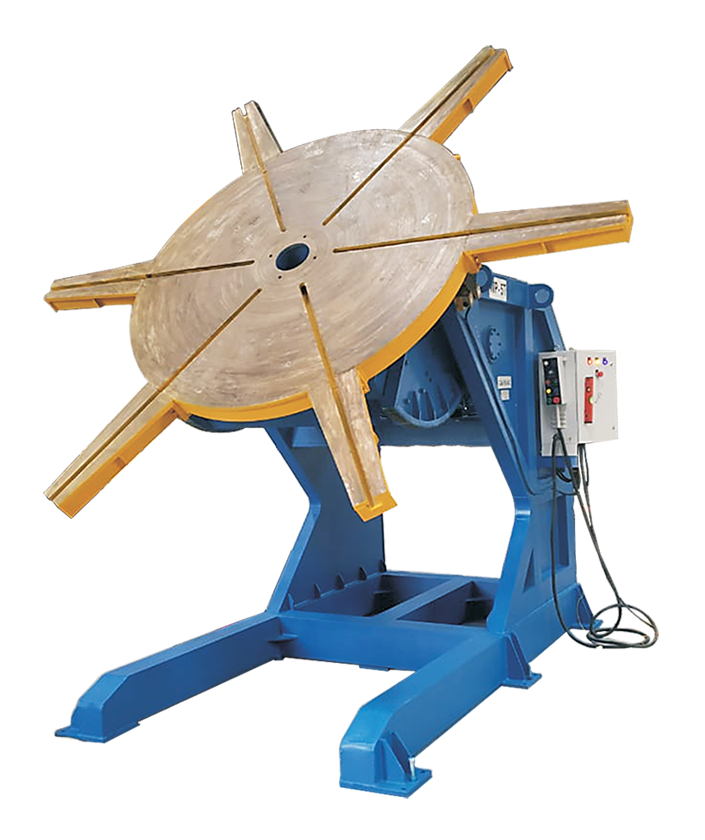

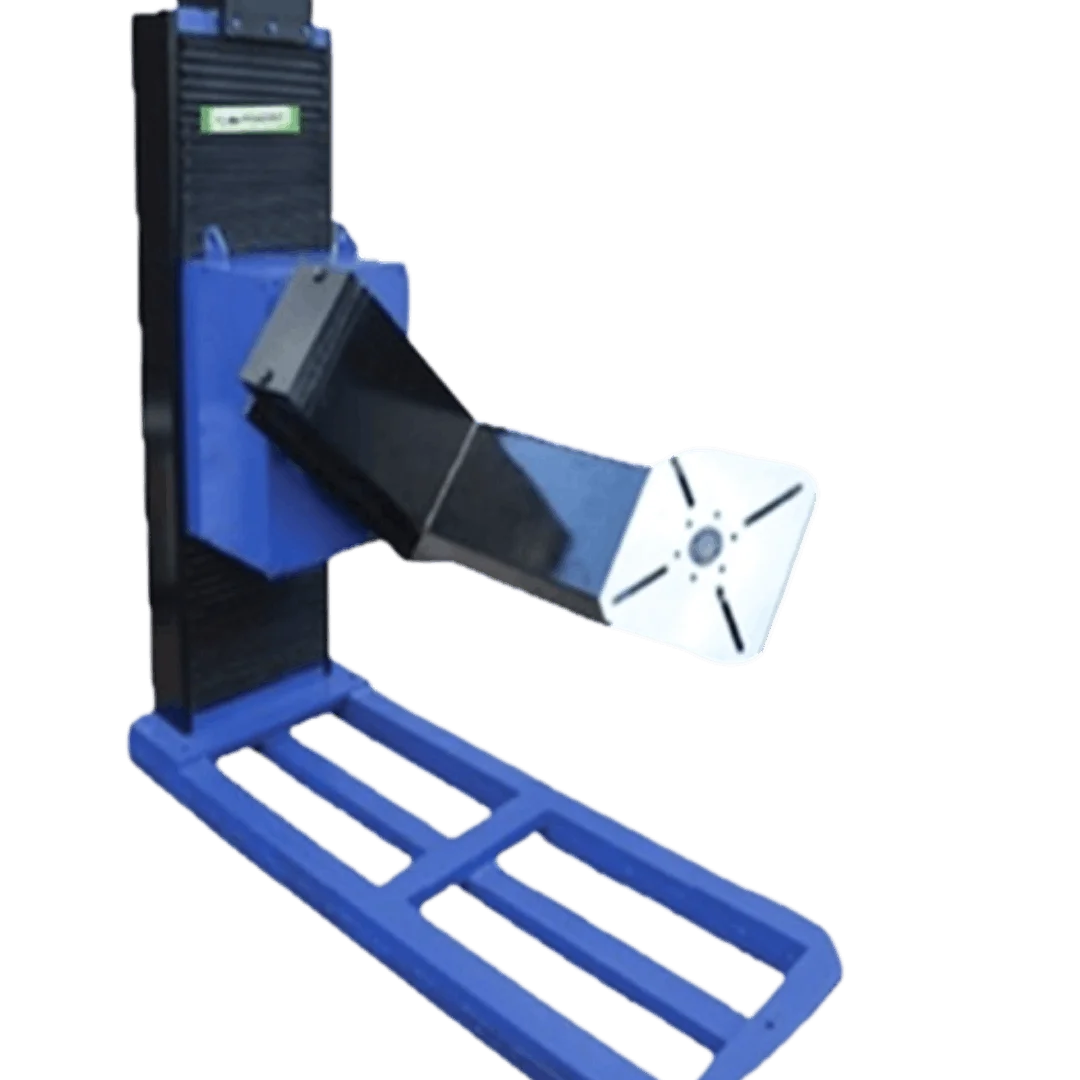

Extended arms can also be provided to accommodate a bigger job.

Specifications for standard welding positioner

Model	WP - 50	WP - 100	WP - 250	WP - 500	WP - 1000	WP - 1500	WP - 2000	WP - 5000	WP - 10000	WP - 20000
Rated load Capacity (Kg)	50	100	250	500	1000	1500	2000	5000	10000	20000
Center of Gravity (mm)	25	50	50	100	125	150	200	250	250	300
Eccentricity (mm)	25	50	50	75	150	150	150	200	200	250
Table Rotation Speed (rpm)	1-10	0.2 - 2	0.2 - 2	0.1 - 1	0.1 - 1	0.1 - 1	0.1 - 1	0.1 - 1	0.05 - 0.5	0.05- 0.5
Table Diameter(mm)	300	400	500	750	1000	1000	1000	1500	1500	2500
Table Tilting Speed for 135°	Manual	60	60	60	60	60	60	90	100	100
Table Height From Floor (Approx) mm	410	475	525	650	950	1050	1150	1350	1850	2250
